Introduction

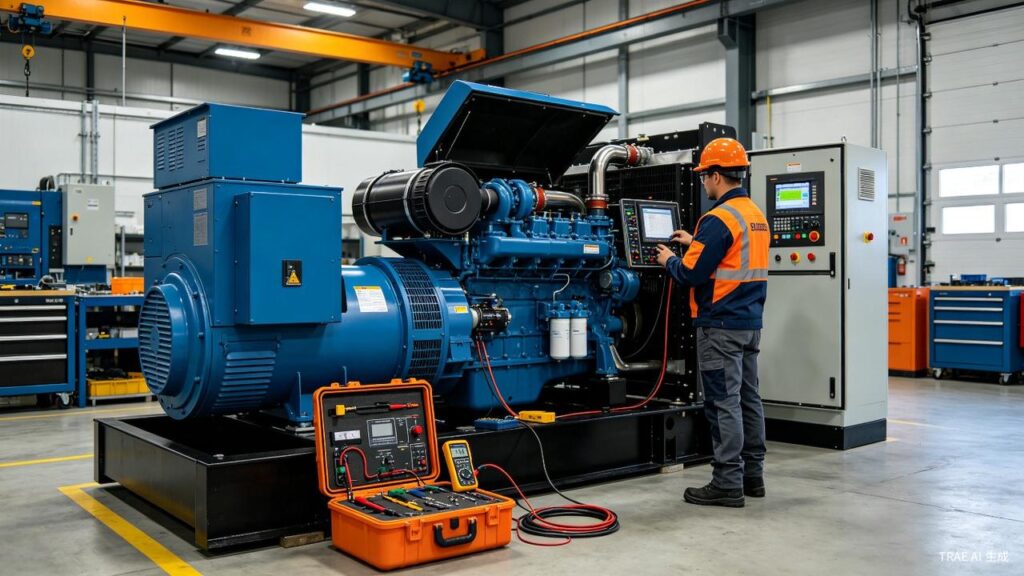

Every generator set will experience faults at some point in its service life. The difference between a minor inconvenience and a costly shutdown often comes down to how quickly and accurately the problem is diagnosed. This guide covers the most common generator faults we encounter in the field, along with systematic troubleshooting steps that technicians and operators can follow to identify root causes and implement solutions.
Fault 1: Engine Fails to Start
This is the most common and most frustrating generator fault. When the engine cranks but does not fire, or does not crank at all, follow this diagnostic sequence:
Battery and Electrical System
Check battery voltage first. It should read 12.4V or higher for a 12V system, or 24.8V for a 24V system. Low voltage is the number one cause of starting failure. Inspect battery terminals for corrosion and ensure cable connections are tight. Test the starter motor by measuring voltage at the starter terminal during cranking. If voltage drops below 9V under load, the battery is too weak.
Fuel System
Verify fuel level in the tank. Check for air in the fuel lines by bleeding the system at the filter housing. Inspect the fuel lift pump for proper operation. A failed lift pump will prevent fuel from reaching the injection pump. On electronic engines, check for fault codes related to the fuel rail pressure sensor.
Control and Safety Systems
The control panel may be preventing startup due to a safety lockout. Check for active alarms: low oil pressure, high coolant temperature, overspeed, or emergency stop. Reset the control module and attempt a manual start.
Fault 2: Unstable Voltage or Frequency
When the generator runs but output voltage or frequency fluctuates beyond acceptable limits, the following components should be investigated:
AVR (Automatic Voltage Regulator)
The AVR is the most common culprit for voltage instability. Check AVR input voltage from the excitation winding. Measure the AVR output to the exciter field. If the AVR is not responding to load changes, it may need replacement.
Engine Speed Governor
Frequency instability is almost always an engine speed issue. Check the electronic governor for proper response to load steps. Inspect the actuator linkage for wear or binding.
Fault 3: Engine Overheating
High coolant temperature shutdowns protect the engine from catastrophic damage, but frequent overheating indicates an underlying problem:
Cooling System
Check coolant level in the radiator and expansion tank. Inspect the radiator for external blockage. On units with belt-driven fans, verify belt tension and condition.
Coolant Circulation
A failed water pump will cause rapid overheating. Check for coolant flow through the system by feeling radiator hose temperature differential. The thermostat may be stuck closed.
Fault 4: Excessive Smoke
Smoke color tells you a lot about what is wrong:
Black Smoke (Incomplete Combustion)
Indicates too much fuel or not enough air. Check the air filter for restriction. Inspect the turbocharger for proper boost pressure.
Blue Smoke (Oil Burning)
Oil entering the combustion chamber causes blue smoke. Worn piston rings, valve seals, or turbocharger seals are common causes.
White Smoke (Coolant or Unburned Fuel)
Coolant leaking into the combustion chamber from a cracked head gasket or cylinder head will produce white smoke with a sweet smell.
Fault 5: Low Oil Pressure
Oil pressure below the manufacturer minimum specification requires immediate attention:
Oil Level and Condition
Check oil level on the dipstick. Oil that appears milky or foamy indicates coolant contamination. Fuel dilution from excessive cold starts or failed injectors will thin the oil and reduce pressure.
Mechanical Components
A worn oil pump or excessive bearing clearance in a high-hour engine will cause low oil pressure. Measure oil pressure with a mechanical gauge to verify the sensor reading.
Fault 6: Battery Failures
Batteries are often the weakest link in generator reliability:
Charging System
The alternator or battery charger must maintain proper float voltage (13.5-13.8V for 12V systems). Overcharging causes electrolyte loss and plate damage. Undercharging leads to sulfation and capacity loss.
Battery Age and Maintenance
Most generator batteries last 3-5 years. Load testing with a battery tester will reveal actual capacity. Keep terminals clean and coated with anti-corrosion compound.
Preventive Measures
Most generator faults can be prevented with regular maintenance:
- Run the generator under load at least monthly to exercise all systems
- Change oil and filters per the manufacturer schedule
- Keep the cooling system clean and coolant properly mixed
- Test batteries quarterly and replace before failure
- Inspect fuel system for leaks and water contamination
- Keep spare filters, belts, and sensors on hand
When to Call a Specialist
While many faults can be resolved with basic troubleshooting, some situations require professional service: internal engine damage, alternator rewinding, control module programming, and warranty repairs. Keeping detailed fault logs will help service technicians diagnose problems faster and reduce downtime.
