Introduction
Choosing the right diesel generator for your project is one of the most critical decisions you will make during the planning phase. An undersized generator will fail to support your load, while an oversized unit leads to wasted capital and inefficient fuel consumption. This guide walks you through every technical factor you need to evaluate — from power calculation and load types to emission standards and control system requirements — so you can specify a generator set that matches your project needs precisely.
Step 1: Calculate Your Total Power Requirement
The foundation of generator selection starts with an accurate load analysis. You need to list every electrical device that the generator will power and determine both its running (steady-state) power and its starting (inrush) power.
Understanding Running vs. Starting Power
Most equipment draws a steady amount of power during normal operation. However, electric motors, compressors, pumps, and air conditioning units require a significantly higher surge of power during startup — typically 2 to 3 times their running current. This is known as locked-rotor current (LRA) or inrush current.
When sizing your generator, you must account for the worst-case scenario: the moment when the largest motor starts while all other loads are already running. A common rule of thumb is to add 20–30% headroom above your calculated total load to handle unexpected demand and prevent overloading.
Resistive vs. Inductive Loads
Loads fall into two broad categories:
- Resistive loads (lighting, heaters, electric kettles) draw a constant power factor close to 1.0. They are straightforward to calculate.
- Inductive loads (motors, transformers, UPS systems) have a power factor typically between 0.7 and 0.85. They require careful consideration of both real power (kW) and apparent power (kVA).
The relationship is: kW = kVA × Power Factor. Always use kVA as your baseline when comparing generator specifications, then convert to kW using the actual power factor of your load.
Step 2: Understand Generator Power Ratings
Generators are rated differently depending on their intended use. The three main ratings you will encounter are:
Standby Power (ESP)
Designed for emergency backup situations where utility power fails. A standby-rated generator can run for a limited number of hours per year (typically 200–500 hours) at its maximum output. It is not intended for continuous daily operation.
Prime Power (PRP)
Designed for applications where the generator serves as the primary or sole source of power. A prime-rated generator can run unlimited hours per year at variable load, with a typical overload capacity of 10% for 1 hour every 12 hours.
Continuous Power (COP)
Designed for constant, unvarying loads over extended periods. Continuous-rated generators run 24/7 at a fixed load level, typically used in mining, remote facilities, and base-load applications.
Key takeaway: Match the rating to your application. Using a standby generator for continuous prime power will lead to accelerated wear and potential engine failure.
Step 3: Choose the Right Engine and Alternator
Engine Selection
The engine is the heart of the generator set. Key factors include:
- Brand reputation: Established brands like Cummins, Perkins, Volvo Penta, and Yuchai offer proven reliability and global parts availability.
- Fuel system: Modern diesel engines feature electronic fuel injection (EFI) for better efficiency and lower emissions compared to older mechanical systems.
- Emissions compliance: Ensure the engine meets local regulations. Common standards include EPA Tier 3/4 (USA), EU Stage IIIA/V (Europe), and China National VI.
- Cooling system: Radiator-cooled units are standard for most applications. In extreme environments, consider high-temperature or desert-rated cooling packages.
Alternator Selection
The alternator converts mechanical energy into electrical power. Look for:
- Brushless design: Brushless alternators require less maintenance and offer more stable voltage output.
- Class H insulation: Provides better thermal resistance and longer winding life.
- IP23 or higher protection: Ensures the alternator is protected against solid objects and water ingress.
- Single-bearing vs. double-bearing: Double-bearing alternators offer better shaft alignment and durability, especially for extended run applications.
Step 4: Control Panel and Monitoring
The control panel is your interface with the generator. Modern controllers offer a range of features:
- Auto-start/stop (AMF): Automatically starts the generator when utility power fails and transfers the load via an ATS (Automatic Transfer Switch).
- Remote monitoring: IoT-enabled controllers allow you to monitor generator status, fuel level, and performance metrics from anywhere via mobile app or web portal.
- Protection systems: Look for controllers that provide comprehensive protection against over-speed, over-voltage, under-voltage, over-current, high coolant temperature, and low oil pressure.
- Event logging: Records operational history for maintenance planning and fault diagnosis.
Popular controller brands include Deep Sea Electronics (DSE), ComAp, and Datakom.
Step 5: Fuel System and Tank Sizing
Fuel capacity directly affects how long your generator can run between refueling. Consider these factors:
- Base tank capacity: Typically sized for 6–24 hours of operation at 75% load.
- Day tank: For larger installations, a separate day tank ensures consistent fuel supply and allows the main tank to be refilled without shutting down.
- Fuel consumption rate: A general estimate is 0.25–0.35 liters per kWh for diesel generators, but this varies with load percentage and engine efficiency.
At 75% load, a 500 kVA diesel generator typically consumes approximately 100–110 liters per hour. Always request the manufacturer’s fuel consumption curve for your specific model.
Step 6: Environmental and Noise Considerations
Depending on your installation location, noise and emissions may be regulated:

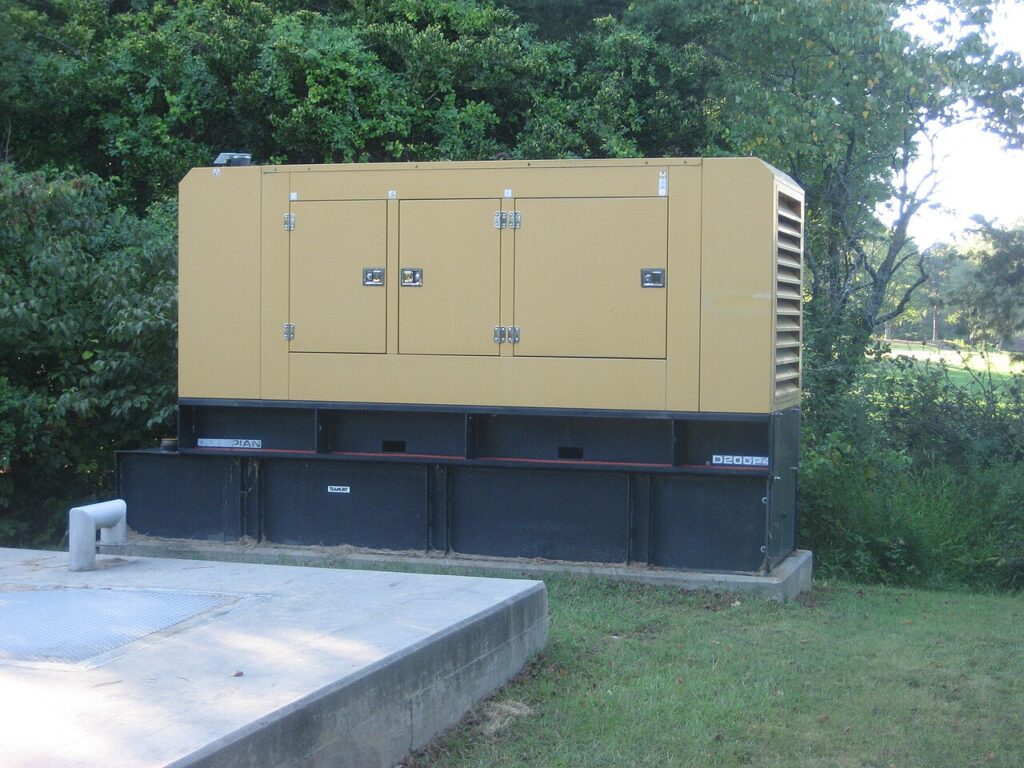

- Sound level: Open-set generators produce 95–110 dB(A) at 1 meter. If noise is a concern, choose a canopy-enclosed (soundproof) unit rated at 65–80 dB(A) at 7 meters.
- Emissions: Diesel generators produce NOx, PM, CO, and HC. Modern engines with DPF (Diesel Particulate Filter) and SCR (Selective Catalytic Reduction) systems can meet stringent emission standards.
- Exhaust system: Proper exhaust routing with residential-grade silencers is essential for occupied areas.
Step 7: Installation and Site Requirements
Before finalizing your generator purchase, ensure your site can accommodate the unit:
- Foundation: Generators require a flat, level concrete base capable of supporting the unit’s weight and absorbing vibration.
- Ventilation: Adequate airflow is critical for both engine cooling and combustion air supply.
- Access: Leave sufficient clearance around the unit for maintenance access (typically 1–2 meters on all sides).
- Cable routing: Plan the routing of power cables, control cables, and fuel lines before installation.
Checklist: Key Specifications to Request from Suppliers
When requesting quotes from generator suppliers, always ask for the following:
- Power rating (kVA/kW) and applicable standard (ESP/PRP/COP)
- Engine brand, model, and emission certification
- Alternator brand, model, and protection class
- Controller brand and model number
- Fuel consumption curve at 25%, 50%, 75%, and 100% load
- Sound level at rated load (with canopy if applicable)
- Overall dimensions and dry/wet weight
- Cooling system type and ambient temperature rating
- Warranty terms and after-sales service coverage
- Delivery lead time and packaging for shipping
Conclusion
Selecting the right diesel generator requires a systematic approach: calculate your load, match the power rating to your application, choose reliable engine and alternator brands, specify an appropriate control system, and plan for fuel, noise, and installation requirements. By following this guide, you will be well-equipped to evaluate supplier proposals and make an informed purchasing decision that ensures reliable power for years to come.
If you need assistance with generator selection or sourcing from verified Chinese manufacturers, contact our team for expert guidance tailored to your project.
